SYG-I Hand Stacker
Modol: SYG-I Hand Stacker

Manual stacker made of high-strength high-quality steel

  • The portal frame is made of high-quality channel steel with good rigidity and high strength, which can be used for a long time.
  • The manual pedal can replace the lifting function of the operation, which is not easy to fatigue and improves the working efficiency;
  • Portal frame and fork are available in various styles, suitable for various sites and pallets stacking.
  • Customizable specifications: external width and length of support leg; Outer width and length of fork.
  • Parameters

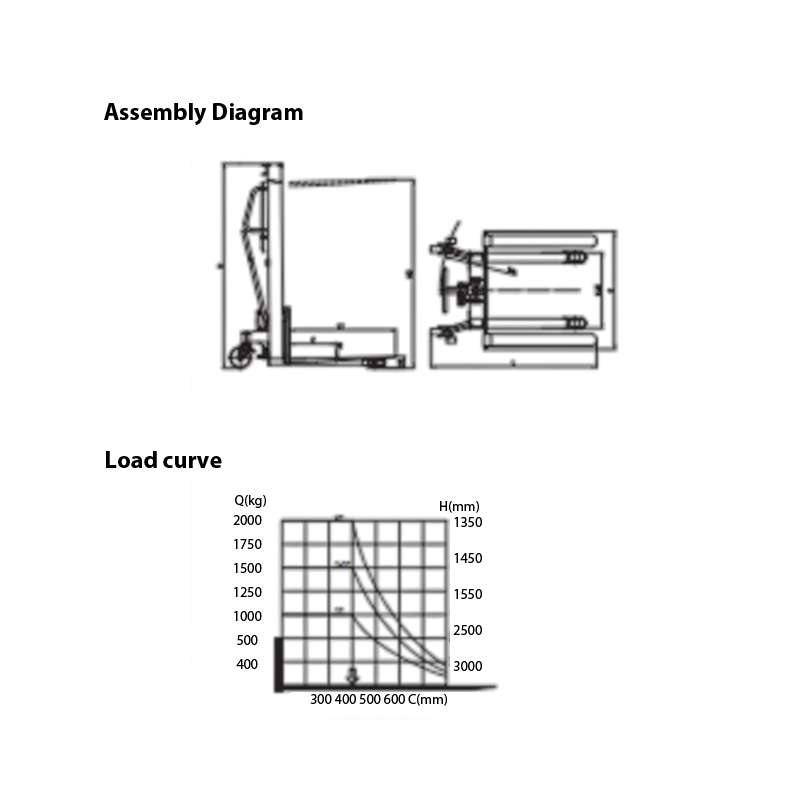

  • Assembly Diagram
  • Contact
  • Model



    SYG- Ⅰ 0516

    SYG- Ⅰ 1016

    SYG- Ⅰ 1516

    SYG- Ⅰ 2016

     Basic







    Rated load

    Q(Kg)

    500

    1000

    1500

    2000

    Load centre distance

    C(mm)

    400

    400

    400

    400

    Lifting method



    Manual/Foot pedal

    Operating method



    Walking

    Wheels









    Material



    Nylon

    Swivel/weight bearing wheels Quantity



    2/2

    2/2

    2/2

    2/2

    Wheel spacing

    mm

    1140

    1140

    1140

    1140

    Load bearing wheel size

    mm

    Φ75×42

    Φ80×60

    Φ80×60

    Φ80×60

    Steering wheel size

    mm

    Φ180×50

    Φ180×50

    Φ180×50

    Φ180×50

    Dimensions





















    Minimum fork height from the ground

    H1(mm)

    90

    90

    90

    90

    Maximum height after fork lift

    H2(mm)

    1600

    1600

    1600

    1600

    Outside width of forks

    mm

    220-720

    200-940

    200-940

    240-940

    Inside fork width

    mm

    20-520

    0-740

    0-740

    0-700

    Fork working length

    L1(mm)

    800(Covered forks)

    900(Forged forks)

    900(Forged forks)

    900(Forged forks)

    Single-sided fork dimensions

    e/s(mm)

    100/48

    100/30

    100/30

    120/30

    Overall vehicle length

    L(mm)

    1284

    1375

    1430

    1430

    Overall vehicle width

    E(mm)

    820

    1000

    1000

    1000

    Overall vehicle height

    H(mm)

    1985

    1985

    2085

    2085

    Aisle width, pallet1000×1200

    mm

    1734/1725/1780

    Minimum turning radius

    Wa(mm)

    1250

    1400

    1400

    1400

    Performance



    Number of times fork lift to maximum pump pressure (full load)

    times

    ≤76

    ≤76

    ≤110

    ≤110

    下Descent speed (full/no load)

    mm/s

    Foot Control

    Weight

    Self-weight

    Kg

    190

    220

    250

    275

    *We reserve the right to change product design and specifications without prior notice.
