SYP-I Hydraulic Pallet Truck
Modol: SYP-I Hydraulic Pallet Truck

Maintenance-free and disassembly-free hydraulic pallet truck

  • High-quality fully-sealed welded oil cylinder, the shell seat is an integrated design of machinery and hydraulic pressure, reliable leak-proof, maintenance-free, and free from assembly and disassembly.
  • The overflow valve provides overload protection for overweight operations. If 20% of the truck's rated load is exceeded, under certain circumstances, the overflow valve comes into play to protect the cylinder from damage in the event of an overload.
  • Parameters

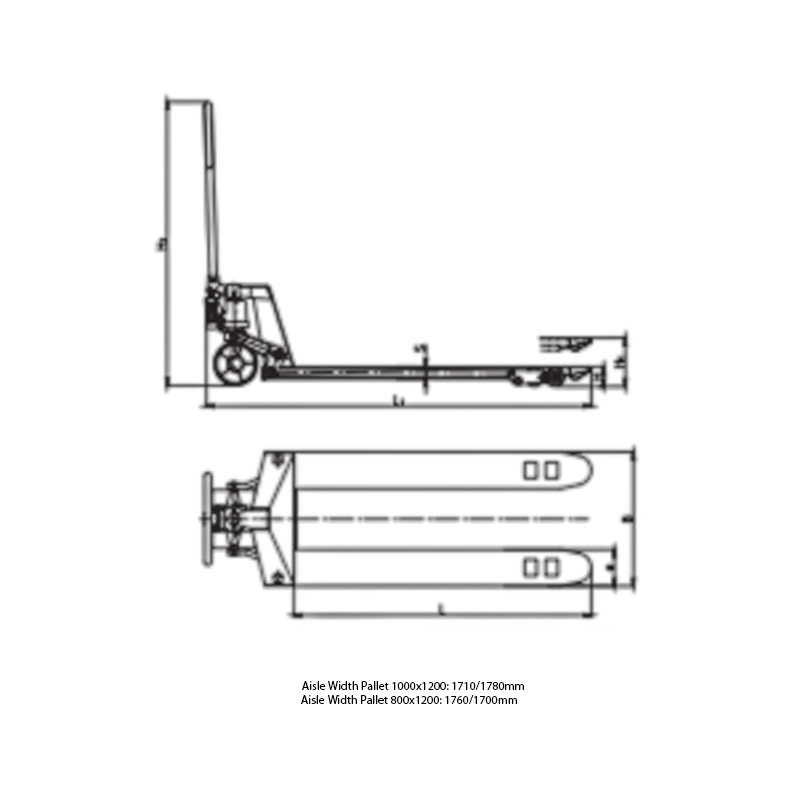

  • Assembly Diagram
  • Contact
  • Rated load

    Kg

    2000

    2500

    3000

    Minimum fork height

    H(mm)

    85

    85

    85

    Maximum height after fork lift

    H1(mm)

    200

    200

    200

    Max. lifting stroke

    mm

    ≥110

    ≥110

    ≥110

    Outside width of forks

    B(mm)

    520/550/685

    520/550/685

    520/550/685

    Inside fork width

    mm

    200/230/365

    200/230/365

    200/230/365

    Fork working length

    L(mm)

    915/1100/1150/1220

    915/1100/1150/1220

    915/1100/1150/1220

    Single fork width

    e(mm)

    160

    160

    160

    Fork thickness

    s(mm)

    50

    50

    50

    Overall vehicle length

    L1(mm)

    1160-1580

    1160-1580

    1160-1580

    Overall vehicle width

    mm

    520/550/685

    520/550/685

    520/550/685

    Overall vehicle height

    H2(mm)

    1170

    1170

    1170

    Cylinder lift rod diameter

    mm

    Φ30

    Φ30

    Φ30

    Load-bearing single wheel size

    mm

    Φ80×84

    Φ80×84

    Φ80×84

    Load-bearing twin wheel size

    mm

    Φ80×60

    Φ80×60

    Φ80×60

    Steering wheel size

    mm

    Φ180×50

    Φ180×50

    Φ180×50

    Minimum turning radius

    mm

    1110/1300/1350/1450

    1110/1300/1350/1450

    1110/1300/1350/1450

    Wheel material



    PU/Nylon/Rubber

    PU/Nylon/Rubber

    PU/Nylon/Rubber

    Self-weight

    Kg

    56-63

    66-76

    70-80

    *We reserve the right to change product design and specifications without prior notice.
