SYG-Q Mini Hand Stacker
Modol: SYG-Q Mini Hand Stacker

Customizable mini manual stacker

 Lightweight body, small turning radius, comfortable operation.

 The door frame is made of imported seamless steel tube, unique positioning wheel design.

①Optional: fork pallet platform plate (platform plate size: 610×580mm)

②Customizable specifications: outer width and length of support legs; outer width and length of forks

  • Parameters

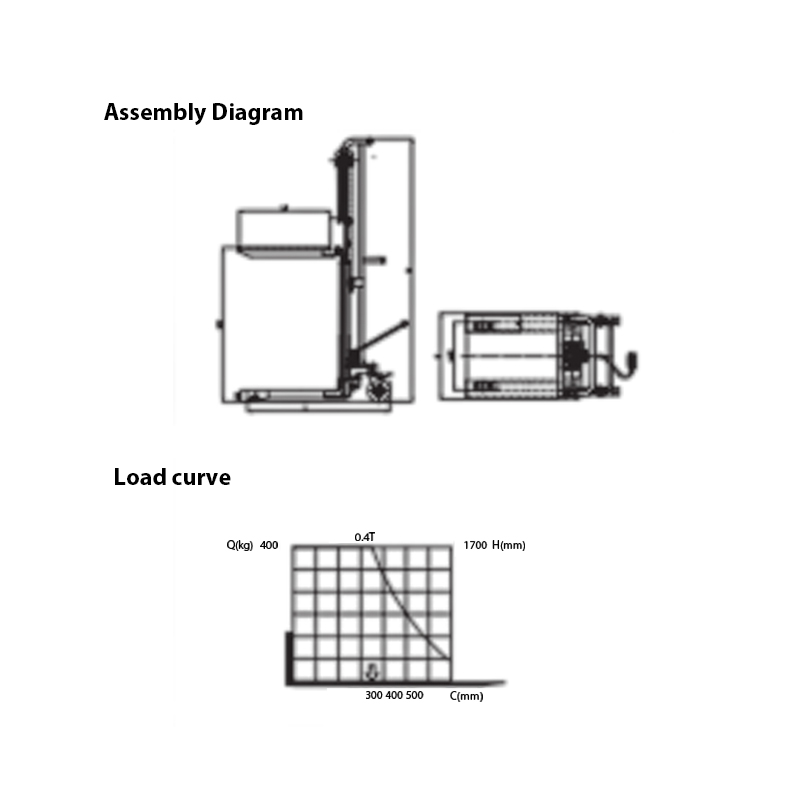

  • Assembly Diagram
  • Contact
  • Model



    SYG-Q 0411

    SYG-Q 0413

    SYG-Q 0415

    Basic

    Rated load

    Q(Kg)

    400

    400

    400

    Load centre distance

    C(mm)

    350

    350

    350

    Lifting method



    Foot pedal Foot pedal Foot pedal

    Operating method



    Walking Walking Walking

    Wheels

    Material



    PU/Nylon PU/Nylon PU/Nylon
    Swivel/Weight bearing wheels Quantity



    2/2

    2/2

    2/2

    Wheel spacing

    mm

    789

    789

    789

    Load-bearing wheel size

    mm

    Φ75×42

    Φ75×42

    Φ75×42

    Steering wheel size

    mm

    Φ150×38

    Φ150×38

    Φ150×38

    Size

    Minimum fork height from the ground

    H1(mm)

    90

    90

    90

    Maximum height of forks after lifting

    H2(mm)

    1100

    1300

    1500

    Fork outside width

    mm

    550

    550

    550

    Inside fork width

    mm

    310

    310

    310

    Fork working length

    L1(mm)

    615

    615

    615

    Single-sided fork size

    e/s(mm)

    120/60

    120/60

    120/60

    Overall length

    L(mm)

    1000

    1000

    1000

    Overall width

    E(mm)

    610

    610

    610

    Overall height

    H(mm)

    1370

    1570

    1770

    Ground clearance at the lower end of the gantry

    mm

    30

    30

    30

    Min. turning radius

    Wa(mm)

    1022

    1022

    1022

    Performance Number of times fork lift to maximum pump pressure (full load)

    times

    ≤35

    ≤42

    ≤48

    Descent speed (full/no load)

    mm/s

    Foot-operated Foot-operated Foot-operated
    Weight

    Self-weight

    Kg

    94

    100

    105

     *We reserve the right to change product design and specifications without prior notice.
