SYG-II Hand Stacker
Modol: SYG-II Hand Stacker

Manual pedal function stacker can be customized

  • The C "shaped steel portal frame made by special rolling process is connected by full welding technology. It is firm and durable.
  • The manual foot pedal can replace the lifting function of operation, which is not easy to fatigue and improves work efficiency;
  • The portal frame and fork are available in a variety of styles, suitable for various sites and pallet stacking.
  • When the oil circuit breaks unexpectedly, the explosion-proof valve will block the hydraulic oil circuit, making the fork stay at a fixed height and not drop rapidly, effectively ensuring the safety of goods and personnel.
  • Customizable specifications: external width and length of support leg; Outer width and length of fork.
  • Optional: forged fork, covered fork and fixed fork.
  • Parameters

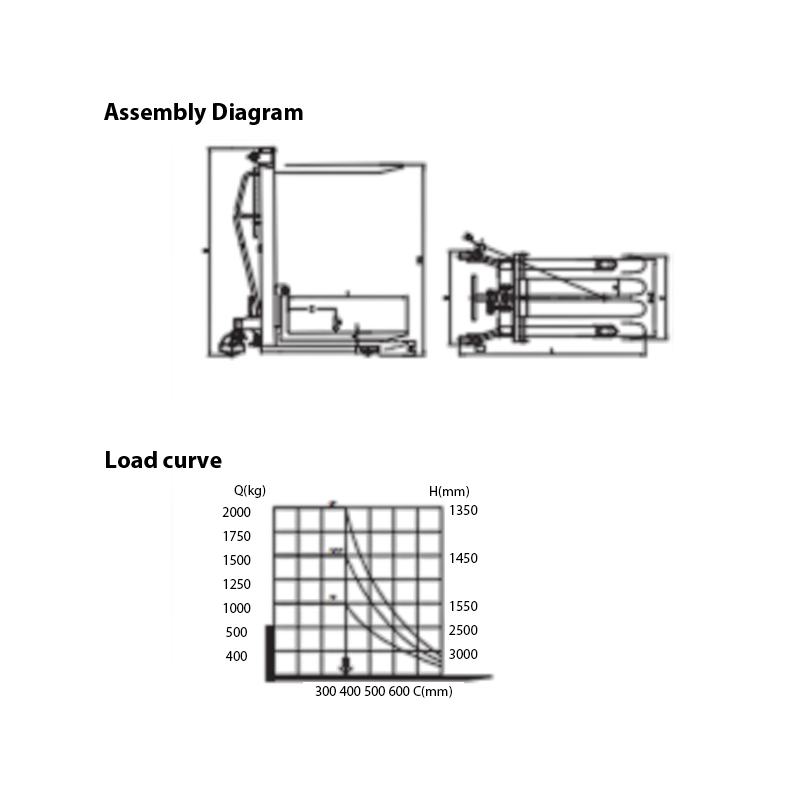

  • Assembly Diagram
  • Contact
  • Model



    SYG- Ⅱ 2016

    SYG- Ⅱ 1020

    SYG- Ⅱ 1025

    Basic







    Rated load

    Q(Kg)

    2000

    1000

    1000

    Load centre distance

    C(mm)

    400

    400

    400

    Lifting methods



    Manual/Foot pedal

    Mode of operation



    Walking

    Wheels









    Materials



    Nylon

    Steering wheels / load-bearing wheels Quantity



    2/2

    2/2

    2/2

    Wheelbase

    mm

    1140

    1140

    1140

    Load-bearing wheel size

    mm

    Φ80×60

    Φ80×60

    Φ80×60

    Steering wheel size

    mm

    Φ180×50

    Φ180×50

    Φ180×50

    Size





















    Minimum fork height from the ground

    H1(mm)

    90

    90

    90

    Maximum height after fork lift

    H2(mm)

    1600

    2000

    2500

    Fork width (outside/inside)

    mm

    340-710/20-390

    320-710/20-410

    320-710/20-410

    Fork size (covered forks)

    l*e*s(mm)

    1000*160*60

    1000*150*60

    1000*150*60

    Aisle width, pallet1000*1200

    mm

    1925

    Aisle width, pallet800*1200

    mm

    1975

    Overall vehicle length

    L(mm)

    1525

    1525

    1525

    Overall vehicle width

    B(mm)

    790

    790

    790

    Overall vehicle height

    H(mm)

    2090

    1580

    1830

    Ground clearance at the lower end of the gantry

    mm

    2090

    2600

    3050

    Minimum turning radius

    Wa(mm)

    1400

    1400

    1400

    Performance



    Number of times fork lift to maximum pump pressure (full load)

    times

    ≤110

    ≤95

    ≤120

    Descent speed (full/no load)

    mm/s

    Foot Control

    Weight

    Self-weight

    Kg

    275

    280

    300

    *We reserve the right to change product design and specifications without prior notice.
