CBD20 Electric Pallet Truck
Modol: CBD20 Electric Pallet Truck

Imported original controller high-efficiency maintenance-free electric pallet truck

  • Optimised structure of the whole machine, the lifting cylinder only drives the forks up and down, the battery is fixed, saving energy and reducing the load and resistance of the moving joint parts.
  • The frame components are made of thick plates, the door pillars are pre-set with a rear tilt angle, and the curved arm rollers drive the forks up and down in parallel without displacement.
  • AC motor drive, no need to replace carbon brushes, maintenance-free, long life; original US CURTIS controller, power meter shows power and working time.
  • The drive wheels are equipped with a force-boosting mechanism that automatically increases the force on the drive wheels as the load increases, ensuring that the vehicle can be driven with less pressure on the drive wheels when it is empty and automatically increases the pressure on the drive wheels when it is loaded, so that the vehicle can drive reliably and without slipping.
  • The battery is fitted with a side-pull type, so that the battery can be pulled out without a lifting device, making it easy to maintain and interchange. The drive wheels are equipped with counterbalance wheels on both sides, making the vehicle very smooth.
  • Parameters

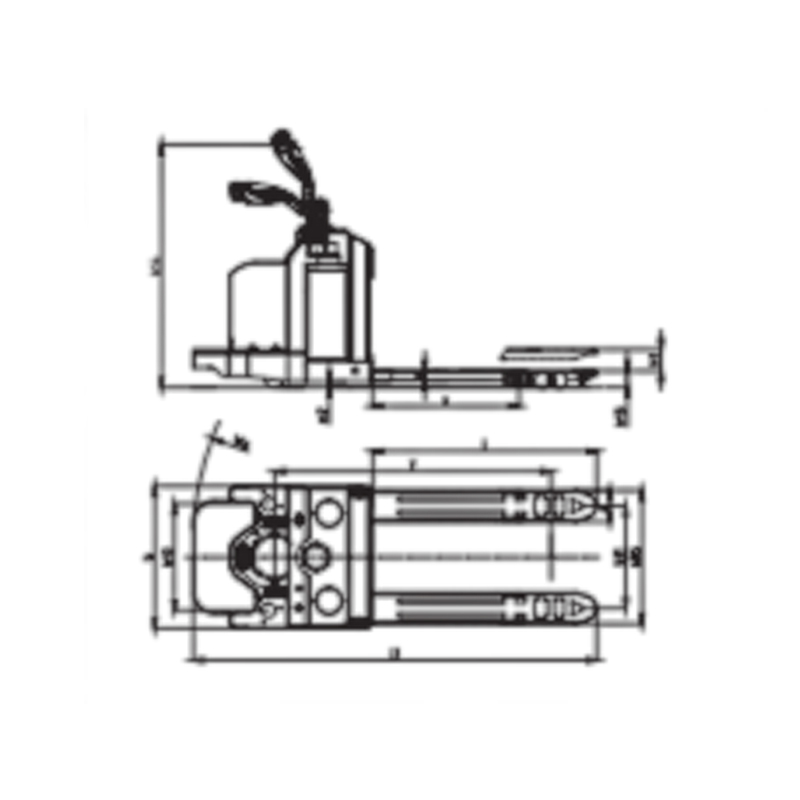

  • Assembly Diagram
  • Contact
  • Model

    Unit

    CBD20

    Basic







    Rated load

    Q(Kg)

    2000

    Load centre distance

    C(mm)

    600

    Lifting method



    Electric

    Operating method



    Station drive

    Wheels











    Material



    PU

    Wheelbase

    Y(mm)

    1430

    Number of drive/Balance/Weight-bearing wheels



    lx+2/4

    Load-bearing wheel size

    mm

    Medium80x70

    Drive wheel size

    mm

    Φ230x75

    Balancer wheel size

    mm

    Φ100x50

    Dimensions























    Minimum fork height

    H13(mm)

    85

    Max. fork height

    H3(mm)

    200

    Max. lifting height

    mm

    115

    Outside fork width

    mm

    685

    Inside fork width

    mm

    365

    Fork length

    l*e*s(mm)

    1150*160*50

    Overall vehicle length

    e/s(mm)

    2090

    Overall width

    LJmm)

    730

    Overall vehicle height

    b(mm)

    1300

    Aisle width, pallet1000x1200

    mm

    2340

    Aisle width, pallet800x1200

    mm

    2390

    Min. turning radius

    Wa(mm)

    1845

    Performance











    Travel speed (full/no load)

    km/h

    4/5

    Lifting speed (full/no load)

    mm/s

    15/22

    Descent speed (full/no load)

    mm/s

    18/12

    Fast/Slow speed adjustment function



    YES

    Gradient climbing

    %

    W5

    Drive mode



    AC

    Electrical







    Drive motors

    V/Kw

    24V/1.5kw

    Lifting motors

    V/Kw

    24V/0.8kw

    Battery capacity

    V/Ah

    24V/170Ah

    Charger type

    V/A

    24V30A

    Weight



    Battery weight

    Kg

    155

    Self-weight

    Kg

    640

    *We reserve the right to change product design and specifications without prior notice.
