CBD30 Electric Pallet Truck
Modol: CBD30 Electric Pallet Truck

High-efficiency all-electric pallet truck with pedals

  • Optimisation of the entire machine structure, the lifting cylinder only drives the forks up and down, the battery is fixed, saving energy and reducing the load and resistance of the moving joint parts.
  • The frame components are made of thick plates, the door pillars are pre-set with a back tilt angle, and the curved arm rollers drive the forks up and down in parallel without displacement.
  • AC motor drive, no need to replace carbon brushes, maintenance-free, long life; original US CURTIS controller, power meter shows power and working time.
  • The drive wheels are equipped with a force-boosting mechanism that automatically increases the force on the drive wheels as the load increases, ensuring that the vehicle can be driven with less pressure on the drive wheels when it is empty and automatically increases the pressure on the drive wheels when it is loaded, so that the vehicle can drive reliably and without slipping.
  • The battery is fitted with a side-pull type, so that the battery can be pulled out without a lifting device, making it easy to maintain and interchange. The drive wheels are equipped with counterbalance wheels on both sides, making the vehicle very smooth.
  • Parameters

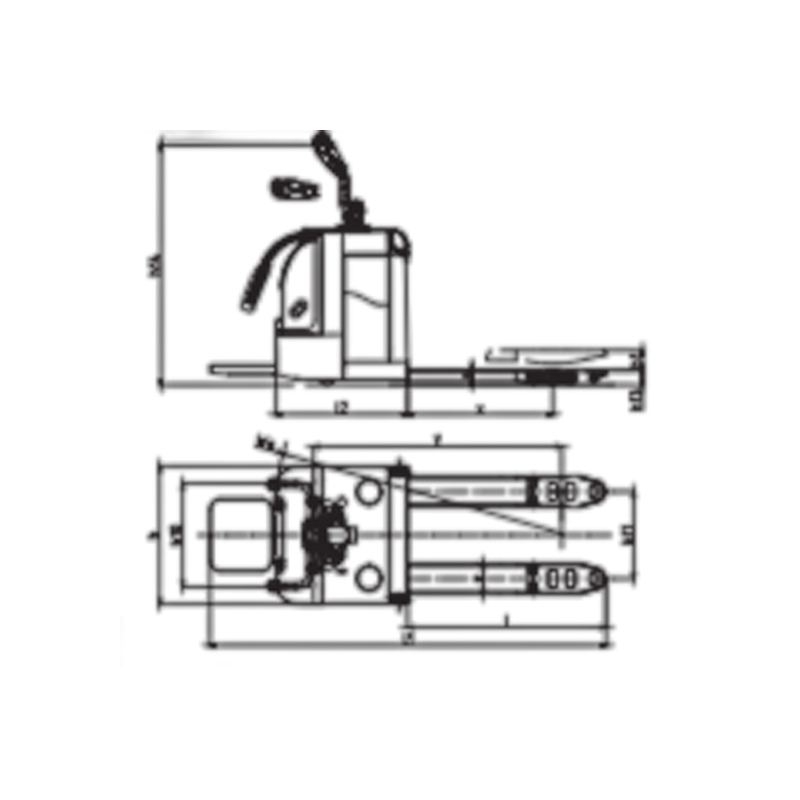

  • Assembly Diagram
  • Contact
  • Model

    Unit

    CBD30

    Basic







    Rated load

    Q(Kg)

    3000

    Load centre distance

    C(mm)

    600

    Lifting method



    Electric

    Operating mode



    Walking/Standing

    Wheel











    Material



    PU

    Wheelbase

    y(mm)

    1500

    Number of drive wheels/Balance wheels/Weight-bearing wheels



    lx+2/4

    Load-bearing wheel size

    mm

    Medium80x70

    Drive wheel size

    mm

    Medium230x75

    Balance wheel size

    mm

    Medium100x50

    Dimensions























    Minimum fork height from the ground

    h13(mm)

    85

    Maximum height after fork lift

    mm

    200

    Max. lifting stroke

    hjmm)

    115

    Fork outside width

    mm

    560/685

    Inside fork width

    mm

    200/325

    Fork working length

    l*e*s(mm)

    1150*180*60

    Overall vehicle length (with pedals down)

    mm

    2300

    Overall vehicle width

    b(mm)

    800

    Overall vehicle height

    h/mm)

    1355

    Aisle width, pallet1000x1200

    mm

    2650

    Aisle width, pallet800x1200

    mm

    2700

    Min. turning radius

    Wa(mm)

    1745

    Performance











    Maximum travel speed (full/no load))

    km/h

    5/6

    Max. lifting speed (full load/no load)

    mm/s

    21.6/35.5

    Maximum descent speed (full/no load)

    mm/s

    28.6/25

    Fast/slow speed adjustment function



    Yes

    Climbing

    %

    6

    Drive mode



    AC

    Electrical







    Drive motor

    V/Kw

    24V2.5kw

    Lifting motor

    V/Kw

    24V2.2kw

    Battery capacity

    V/Ah

    24V/280Ah

    Charger type

    V/A

    24V30A

    Weight



    Battery weight

    Kg

    250

    Self-weight

    Kg

    780

    *We reserve the right to change product design and specifications without prior notice.
