CDDYG-I Electric Stacker
Modol: CDDYG-I Electric Stacker

Energy-saving and environment-friendly high-quality hydraulic power system electric stacker

  • The high-quality hydraulic power system has the advantages of superior performance, stable and powerful operation, low noise, energy conservation and environmental protection;
  • The original imported electronic control system is sensitive, easy to operate, and has the functions of regenerative braking, reverse braking and stepless speed regulation;
  • The handle is equipped with an emergency reverse button and a tortoise-shaped slow travel switch;
  • The auxiliary balance wheel is wear resistant and has good stability.
  • Parameters

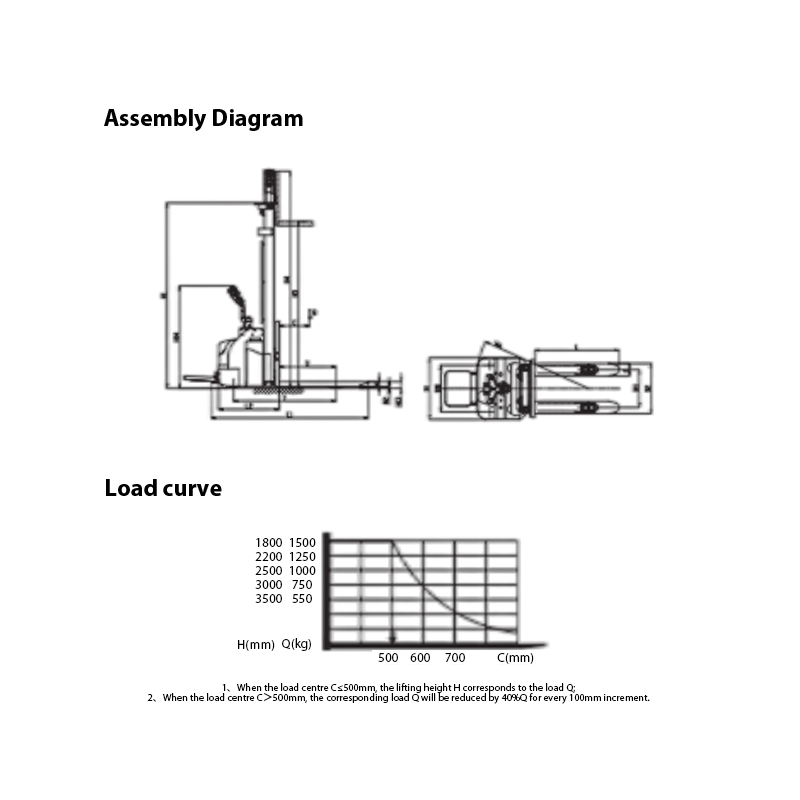

  • Assembly Diagram
  • Contact
  • Model



    CDDYG- Ⅰ 1525

    CDDYG- Ⅰ 1530

    CDDYG- Ⅰ 1535

    Basic

    Rated load

    Q(Kg)

    1500

    1500

    1500

    Load centre distance

    C(mm)

    500

    500

    500

    Lifting method



    Electric

    Electric

    Electric

    Operating method



    Walking/Standing

    Walking/Standing

    Walking/Standing

    Wheels

    Material



    PU

    PU

    PU

    Wheelbase

    Y(mm)

    1320

    1320

    1320

    Driving/steering/weight-bearing wheels Quantity

    mm

    1×+2/4

    1×+2/4

    1×+2/4

    Size of load-bearing wheels

    mm

    Φ80×70

    Φ80×70

    Φ80×70

    Drive wheel size

    mm

    Φ230×75

    Φ230×75

    Φ230×75

    Counterbalance wheel size

    mm

    Φ125×60

    Φ125×60

    Φ125×60

    Dimensions

    Minimum fork height from the ground

    H13(mm)

    90

    90

    90

    Maximum fork height after lifting

    mm

    2500

    3000

    3500

    Max. lifting stroke

    mm

    2480

    2980

    3480

    Outside fork width

    B2(mm)

    685

    685

    685

    Inside fork width

    B11(mm)

    345

    345

    345

    Fork working length

    L/E/S(mm)

    1150/170/60

    1150/170/60

    1150/170/60

    Overall vehicle length (with pedals retracted)

    L1(mm)

    2030

    2030

    2030

    Overall width

    B1(mm)

    840

    840

    840

    Overall height

    H1(mm)

    1890

    2140

    2390

    Min. turning radius

    Wa(mm)

    1545

    1545

    1545

    Aisle width, pallet1000*1200

    mm

    2280

    2280

    2280

    Aisle width, pallet800*1200

    mm

    2330

    2330

    2330

    Performance

    Max. travel speed (full/no load)

    km/h

    4/6

    4/6

    4/6

    Max. lifting speed (full/no load)

    mm/s

    (90-110)/(150-170)

    (90-110)/(150-170)

    (90-110)/(150-170)

    Max. descent speed (full/no load)

    mm/s

    (100-200)/(85-95)

    (100-200)/(85-95)

    (100-200)/(85-95)

    Fast/slow speed adjustment function



    Yes

    Yes

    Yes

    Electronic steering system



    Optional

    Optional

    Optional

    Climbing speed (full/no load)

    %

    4/6

    4/6

    4/6

    Drive mode



    AC

    AC

    AC

     Electrical

    Drive motor

    Kw

    24V1.5

    24V1.5

    24V1.5

    Lifting motor

    Kw

    24V2.2

    24V2.2

    24V2.2

    Battery capacity

    V/Ah

    24/170

    24/170

    24/170

    Charger type



    24V30A

    24V30A

    24V30A

    Weight

    Battery weight

    Kg

    155

    155

    155

    Self-weight

    Kg

    840

    880

    900

    *We reserve the right to change product design and specifications without prior notice.
