CDDYG-II Electric Stacker
Modol: CDDYG-II Electric Stacker

Enhanced standard electric stacker

  • The reinforced standard three-gantry stacker is equipped with a full set of longitudinal and lateral rollers, with uniform displacement and no vibration;
  • Fully free lifting, operation can still be carried out when the working space is highly restricted (such as in a container).
  • Equipped with electronic power steering, American CURTIS drive controller, American Gates high-pressure oil pipe and external explosion-proof valve structure, lifting and lowering are controlled by multi-channel manual valve flow.
  • The lifting oil cylinder is designed with a special buffer structure to make the transition from the rear oil cylinder to the middle oil cylinder smooth, avoid the gantry shaking, and ensure the safety of cargo lifting.
  • The support leg of the door base is made of solid square steel, which makes the structure of the door frame firm and reliable, resistant to impact and deformation.
  • Assembled door-post mechanism with adjustable angle. Equipped with booster cylinder, it can increase the effect of the driving wheel on the ground when loading. After unloading, it can automatically reduce the force on the driving wheel and reduce the wear of the driving wheel surface.
  • Parameters

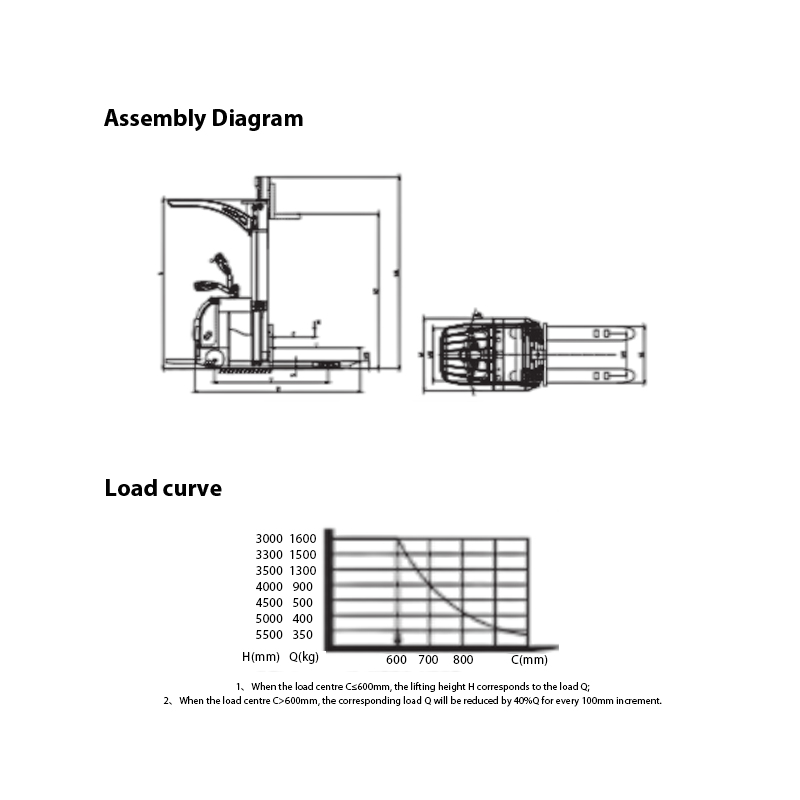

  • Assembly Diagram
  • Contact
  • Model

    CDDYG- Ⅱ 1530/1535             CDDYG- Ⅱ 1545

    Basic









    Rated load

    Q(Kg)

    1500

    1500

    Load centre distance

    C(mm)

    600

    600

    Lifting method



    Electric

    Electric

    Operating method



    Standing

    Standing

    Wheels





















    Material



    PU

    PU

    Wheelbase

    mm

    1380

    1380

    Driving/steering/weight-bearing wheels Quantity



    1×+2/4

    1×+2/4

    Size of load-bearing wheels

    mm

    Φ80×70

    Φ80×70

    Drive wheel size

    mm

    Φ230×75

    Φ230×75

    Counterbalance wheel size

    mm

    Φ125×60

    Φ125×60

    Front overhang

    mm

    670

    670

    Front and rear wheel spacing

    Y(mm)

    1380

    1380

    Front wheel spacing

    b11(mm)

    515

    515

    Rear wheel spacing

    b10(mm)

    645

    645

    Free lift height

    mm

    -

    1600

    Minimum fork height from the ground

    h13(mm)

    90

    90

    Maximum fork height after lifting

    h2(mm)

    3000/3500

    4500

    Dimensions

























    Outside fork width

    mm

    685

    685

    Inside fork width

    mm

    345

    345

    Single side fork size

    l/e/s(mm)

    1150×170×60

    1150×170×60

    Height of roof rack

    h(mm)

    -

    2050

    Overall vehicle length (with pedals retracted)

    L1(mm)

    2110

    2110

    Overall width

    b1(mm)

    880

    880

    Overall height

    h(mm)

    2050/2300

    2050

    Overall vehicle height when forks are raised to maximum height

    h14(mm)

    3500/4000

    5050

    Min. turning radius

    Wa(mm)

    1635

    1635

    Aisle width, pallet1000*1200

    mm

    2350

    2350

    Aisle width, pallet800*1200

    mm

    2400

    2400

    Front and rear axle load (full/no load)

    Kg

    420/900,1020/1800

    420/900,1020/1800

    Front and rear axle load (full/no load)

    km/h

    5/6

    5/6

    Performance











    Max. lifting speed (full/no load)

    mm/s

    90-110/135-165

    90-110/135-165

    Max. descent speed (full/no load)

    mm/s

    300/130

    300/130

    Electronic steering system



    Optional

    Optional

    Climbing speed (full/no load)

    %

    6/8

    6/8

    Drive mode



    AC drive

    AC drive

    Steering motor

    Kw

    0.2

    0.2

    Electrical







    Drive motor

    Kw

    1.5

    1.5

    Lifting motor

    Kw

    3

    3

    Charger type

    V/Ah

    24/280

    24/280

    Electrical



    24V30A

    24V30A

    Weight



    Battery weight

    Kg

    250

    25

    Self-weight

    Kg

    1120/1250

    1360

    *We reserve the right to change product design and specifications without prior notice.
