CPD-E08 Electric Counterbalanced Stacker
Modol: CPD-E08 Electric Counterbalanced Stacker

Efficient and easy-to-maintain electric counterbalanced stacker

Imported AC control system; sensitive response, strong control ability no matter from low speed to high speed or high speed to low speed.
Easy-to-maintain design, using a large-capacity battery pack to ensure strong and long-lasting power, convenient and fast charging, and conducive to battery exchange and maintenance.
  • Parameters

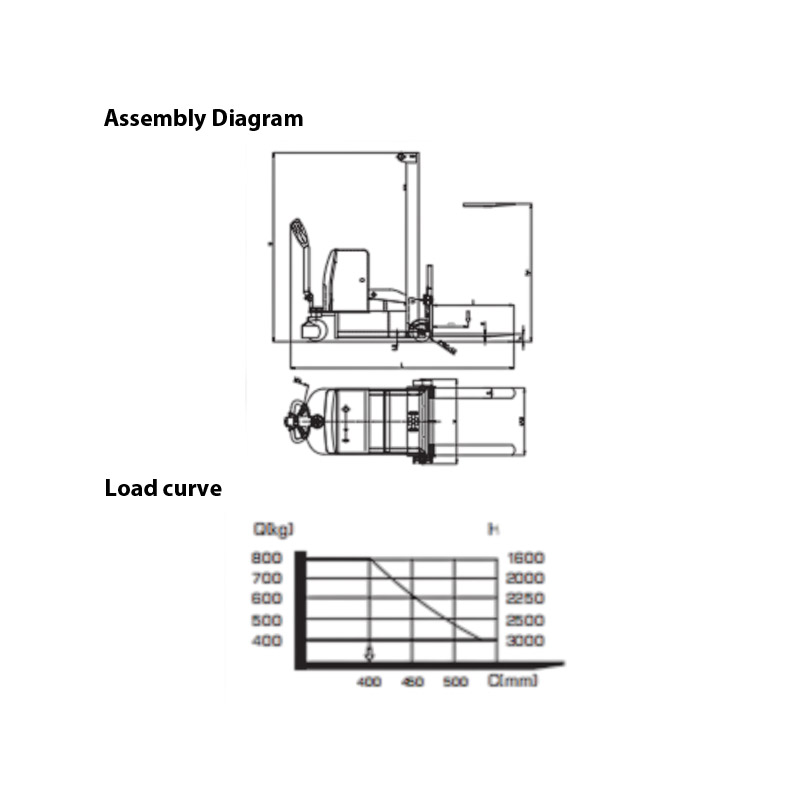

  • Assembly Diagram
  • Contact
  • Model



    CPD-E08

    Basic

    Rated load

    Kg

    800

    Wheel

    Load-bearing wheel size

    mm

    Φ180×50

    Drive wheel size

    mm

    Φ210×75







    Dimensions

    Minimum fork height above ground

    h(mm)

    90

    Maximum fork height after lifting

    h1(mm)

    1600/2000/2500

    Fork dimensions (L x W x D)

    mm

    800×100×30

    Overall vehicle height

    H(mm)

    2000/1600/1850

    Overall length

    L(mm)

    2450

    Overall width

    W(mm)

    900

    Aisle width, pallet1000*1200

    mm

    2900

    Min. turning radius

    mm

    1180

    Performance

    Travel speed (full/no load)

    km/h

    3.5/4

    Lifting speed (full/no load)

    mm/s

    90/114

    Lowering speed (full/no load)

    mm/s

    81/74

    Electrical

    Drive motor

    V/Kw

    24/0.75

    Lifting motor

    V/Kw

    24/2.2

    Battery capacity

    V/Ah

    2×12/120

    Weight

    Self-weight

    Kg

    970/1270/1300

    *We reserve the right to change product design and specifications without prior notice.
