CPD-15G Electric Counterbalanced Stacker
Modol: CPD-15G Electric Counterbalanced Stacker

Counterweight adjustable balance fixed station full electric forklift

  • This product has the function of fully electric stacker operation. It is a portable forklift without front door seat and rear counterweight.
  • The first balanced fixed station car body design. The counterweight can be adjusted. The gantry can tilt back and forth.
  • The pull rod type double oil cylinder lifts the upper pivot of the double tilt cylinder to push, and the double pull rod strengthens the anti-tilt self-locking.
  • Use the special U-shaped steel of the national standard forklift truck, a full set of longitudinal and lateral rollers, with uniform displacement and no vibration.
  • Equipped with electric power steering, vertical drive wheel, automatic adjustment of cylinder pressure.
  • Side-pull battery. Serialized electrical circuit configuration, manual multi-way valve flow controllable. American Gates high pressure oil pipe and external explosion-proof valve structure. Perfect flexibility, compact and smart vehicle design, convenient operation, reliable operation and wide adaptability.
  • Parameters

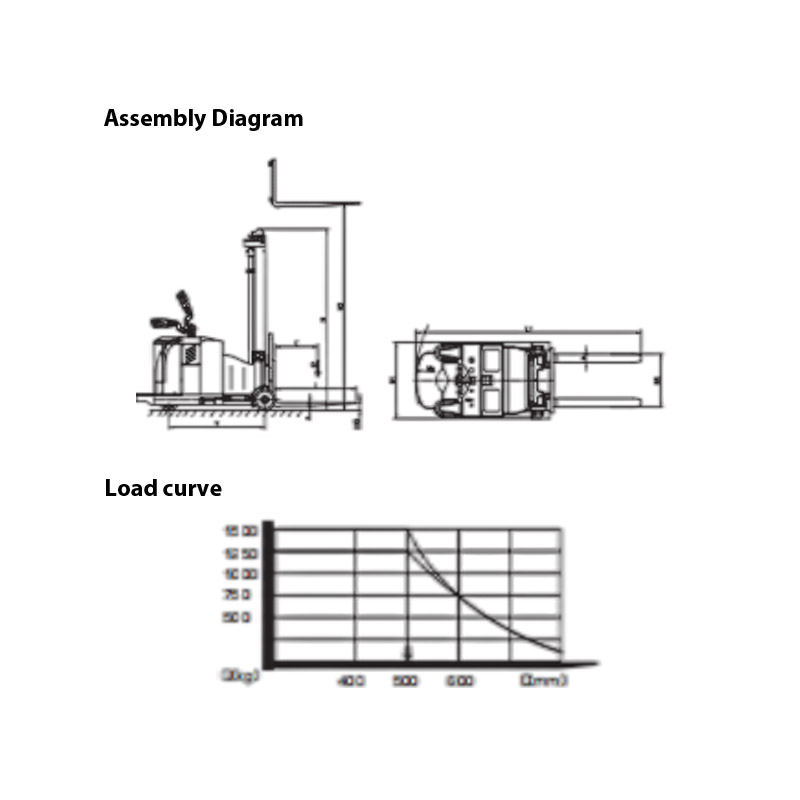

  • Assembly Diagram
  • Contact
  • Model



    CPD12G-1225/1230

    CPD15G-1530



    Basic

    Rated load

    Q(Kg)

    1250

    1500

    Load centre distance

    C(mm)

    500

    500

    Lifting method



    Electric

    Electric

    Operating method



    Stand driver

    Stand driver





    Wheels

    Material



    PU

    PU

    Wheelbase

    Y(mm)

    1136

    1400

    Drive/balance/weight bearing wheels Quantity



    1×+2/2

    1×+2/2

    Load-bearing wheel size

    mm

    Φ252×80

    Φ252×80

    Drive wheel size

    mm

    Φ230×80

    Φ230×80

    Counterbalance wheel size

    mm

    Φ100×50

    Φ100×50













    Dimensions

    Front overhang distance

    mm

    155

    155

    Front wheelbase

    mm

    830

    830

    Rear wheelbase

    mm

    620

    620

    Fork tilt angle (tilt forward/tilt back)



    2°/5°

    2°/5°

    Minimum fork height from the ground

    H13(mm)

    90

    90

    Maximum height after fork lift

    H2(mm)

    2500/3000

    3000

    Outside width of forks

    mm

    220-685

    220-685

    Inside fork width

    mm

    20-485

    20-485

    Single-sided fork dimensions

    l/e/s(mm)

    920×100×40

    920×100×40

    Overall length

    L1(mm)

    2620

    2900

    Overall width

    B1(mm)

    950

    950

    Overall vehicle height

    H(mm)

    1890/2140

    2150

    Overall vehicle height when forks are raised to maximum

    mm

    3100/3600

    3600

    Min. turning radius

    Wa(mm)

    1543

    1770

    Aisle width, pallet1000*1200

    mm

    2998

    3225

    Aisle width, pallet800*1200

    mm

    3198

    3425





    Performance

    Maximum travel speed (full/no load)

    km/h

    6/7

    6/7

    Max. lifting speed (full load/no load)

    mm/s

    125±10/175±10

    80±10/130±10

    Maximum descent speed (full/no load)

    mm/s

    300±10/180±10

    85±10/200±10

    Electronic steering systems



    Yes

    Yes

    Climbing degree (full/no load)

    %

    6/10

    6/10







    Electrical

    Drive mode



    AC drives

    AC drives

    Steering motors

    Kw

    0.2

    0.2

    Drive motors

    Kw

    2.5

    2.5

    Lifting motors

    Kw

    3

    3

    Battery capacity

    V/Ah

    24/240

    24/240

    Charger type



    24V30A

    24V30A

    Weight

    Battery weight

    Kg

    230

    230

    Self-weight

    Kg

    1600/1660

    1760

    *We reserve the right to change product design and specifications without prior notice.
