CPD-E05 Electric Counterbalanced Stacker
Modol: CPD-E05 Electric Counterbalanced Stacker

SHANYE Walking Pallet Stacker

  • The walk-behind pallet stacker is durable enough to withstand the abuse of tough applications.
  • Ease of use even in tight spaces, equipped with a powerful and efficient AC traction system for reliable and advanced stacker performance, the power boost function ensures extra power measurement.
  • The sturdy frame and heavy mast adopt a wide range of heavy steel structures. The power unit door is made of steel to provide additional protection for internal components. Die-cast aluminum and structural webbing ensure that the control handle provides strength and durability after shifting.
  • Parameters

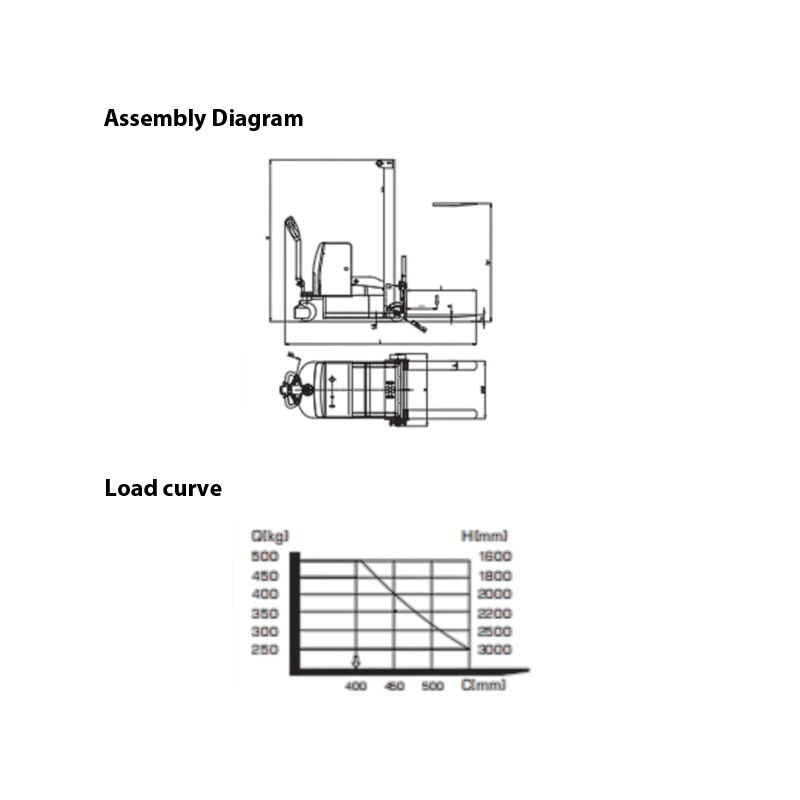

  • Assembly Diagram
  • Contact
  • Model



    CPD-E05

    Basic

    Rated load

    Kg

    500

    Wheel

    Load-bearing wheel size

    mm

    Φ180×50

    Drive wheel size

    mm

    Φ210×75







    Dimensions

    Minimum fork height above ground

    h(mm)

    90

    Maximum fork height after lifting

    h1(mm)

    1600/2000/2500

    Fork dimensions (L x W x D)

    mm

    800×100×25

    Overall vehicle height

    H(mm)

    2000/1600/1850

    Overall length

    L(mm)

    2190

    Overall width

    W(mm)

    816

    Aisle width, pallet1000*1200

    mm

    2640

    Min. turning radius

    mm

    1170

    Performance

    Travel speed (full/no load)

    km/h

    3.5/4

    Lifting speed (full/no load)

    mm/s

    90/114

    Lowering speed (full/no load)

    mm/s

    81/74

    Electrical

    Drive motor

    kw

    24V/0.75

    Lifting motor

    kw

    24V/2.2

    Battery capacity

    V/Ah

    2×12V/120

    Weight

    Self-weight

    Kg

    800/960/1000

    *We reserve the right to change product design and specifications without prior notice.
