SDYG-Z Semi Electric Self-if Stacker
Modol: SDYG-Z Semi Electric Self-if Stacker

Lightweight 500kg semi-electric stacker with alternating locking components

  • Double linkage cylinder assembly. Lock and lift alternately.
  • Three-position four-way valve oil circuit control system, lifting rod and fork linkage, cylinder barrel and body door seat linkage.
  • When the movable door seat moves relative to the cargo fork, it can only move when one part is positioned against the ground or carriage support.
  • Lightweight design concept. The force balance fulcrum is at the edge of the carriage. The weight of the fork head is increased, and the weight of the rear of the door post frame is reduced. The main components are stretched and turned over, and the stress is reliable to ensure strength.
  • The swing guide wheel is installed under the movable door seat to push the vehicle body into the carriage smoothly for maintenance and adjustment.
  • Parameters

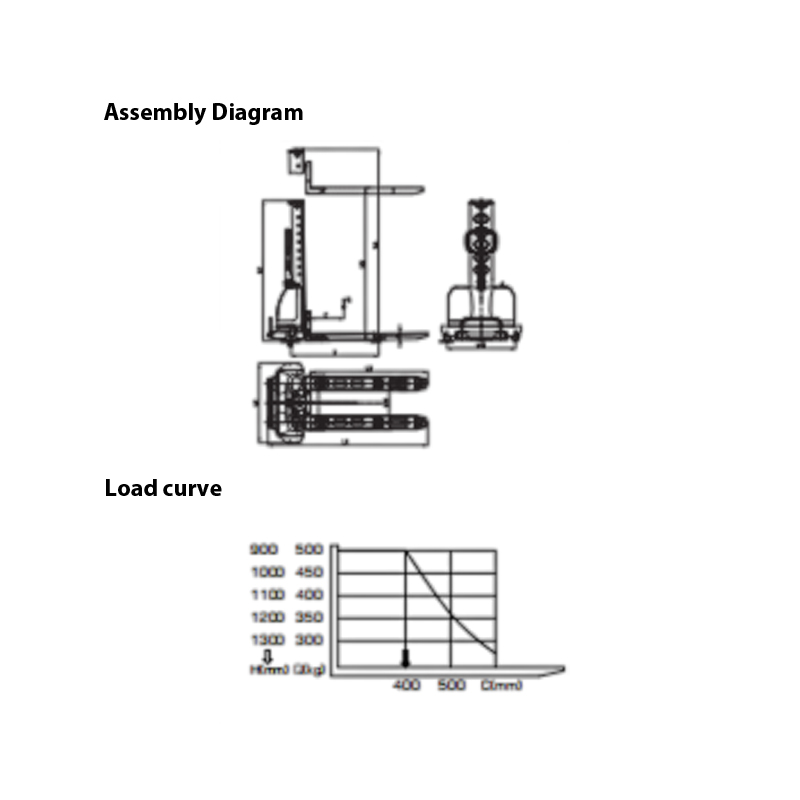

  • Assembly Diagram
  • Contact
  • Models



    SDYG-Z 0509

    SDYG-Z 0510

    SDYG-Z 0511

    SDYG-Z 0513



    Basic

    Rated load

    Q(Kg)

    500

    500

    500

    500

    Load centre distance

    C(mm)

    400

    400

    400

    400

    Lifting method



    Electric Electric Electric Electric

    Operating mode



    Walking

    Walking

    Walking

    Walking







    Wheels

    Material



    Nylon/PU

    Nylon/PU

    Nylon/PU

    Nylon/PU

    Wheelbase

    y(mm)

    860

    860

    860

    860

    Front wheel spacing

    b11(mm)

    380

    380

    380

    380

    Rear wheelbase

    b10(mm)

    670

    670

    670

    670

    Steering wheel/weight bearing wheel/balance wheel Quantity



    2/2/6

    2/2/6

    2/2/6

    2/2/6

    Load-bearing wheel size

    mm

    Φ70×60

    Φ70×60

    Φ70×60

    Φ70×60

    Steering wheel size

    mm

    Φ100×50

    Φ100×50

    Φ100×50

    Φ100×50

    Counterbalance wheel size

    mm

    Φ40×26

    Φ40×26

    Φ40×26

    Φ40×26

    Auxiliary counterbalance wheel size

    mm

    Φ30×26

    Φ30×26

    Φ30×26

    Φ30×26











    Dimensions

    Minimum fork height from the ground

    mm

    90

    90

    90

    90

    Maximum fork height after lifting

    h3(mm)

    900

    1000

    1100

    1300

    Outside fork width

    mm

    535

    535

    535

    535

    Inside fork width

    mm

    225

    225

    225

    225

    Fork working length

    l(mm)

    1150

    1150

    1150

    1150

    One side fork size

    e/s(mm)

    155/60

    155/60

    155/60

    155/60

    Overall vehicle length

    L1(mm)

    1600

    1600

    1600

    1600

    Overall width

    b1(mm)

    790

    790

    790

    790

    Overall vehicle height (with forks lowered)

    h1(mm)

    1200

    1300

    1400

    1600

    Overall vehicle height after gantry lift

    h4(mm)

    2100

    2300

    2500

    2900

    Length to vertical side of forks

    l2(mm)

    1150

    1150

    1150

    1150

    Min. turning radius

    Wa(mm)

    1120

    1120

    1120

    1120

    Performance

    Max. lifting speed (full/no load)

    mm/s

    80/110

    80/110

    80/110

    80/110

    Max. descent speed (full/no load)

    mm/s

    80/80

    80/80

    80/80

    80/80

    Electrical

    Lifting motor

    V/Kw

    12/0.8

    12/0.8

    12/0.8

    12/0.8

    Battery capacity

    V/Ah

    12/33

    12/33

    12/33

    12/33

    Weight

    Battery weight

    Kg

    10

    10

    10

    10

    Self weight

    Kg

    175

    186

    197

    219

    *We reserve the right to change product design and specifications without prior notice.
