SDYG Semi Electric Stacker
Modol: SDYG Semi Electric Stacker

Compact body design 1-2 tons load support customized semi-electric stacker

  • Special rolling process "C" type steel portal frame, solid and safe;
  • Integrated integrated hydraulic power unit with stable and reliable performance;
  • Exquisite body design, flexible operation and labor-saving driving;
  • The connecting rod type turning structure has good turning and control force. Chain auxiliary device can effectively reduce operation fatigue;
  • The foot brake is easy to operate.
  • Customizable specification: external width of support leg.
  • Optional: forged fork, covered fork and fixed fork.
  • Parameters

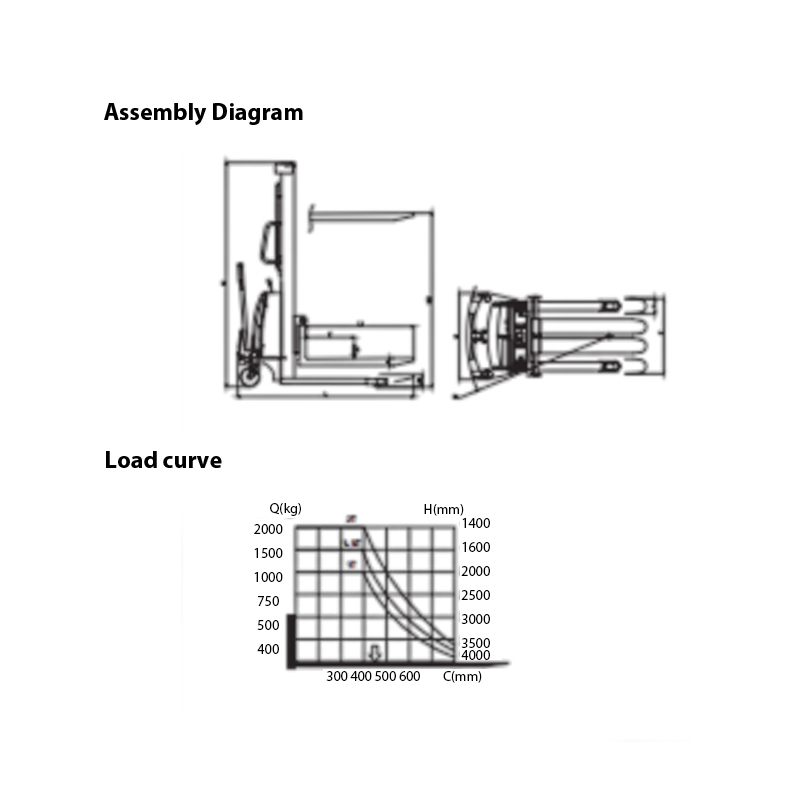

  • Assembly Diagram
  • Contact
  • Models



    SDYG-1016/1020/1025/1030/1035

    SDYG-1516/1520/1525/1530/1535

    SDYG-2016/2020

    Basic

    Rated load

    Q(Kg)

    1000

    1500

    2000

    Load centre distance

    C(mm)

    450

    450

    450

    Lifting method



    Electric

    Electric

    Electric

    Operating mode



    Walkie

    Walkie

    Walkie

    Wheels

    Material



    Nylon

    Nylon

    Nylon

    Steering wheels/weight bearing wheels Quantity



    2/2

    2/2

    2/2

    Wheel spacing

    mm

    1182

    1182

    1182

    Load-bearing wheel size

    mm

    Φ80×60

    Φ80×60

    Φ80×60

    Steering wheel size

    mm

    Φ180×50

    Φ180×50

    Φ180×50

    Dimensions

    Minimum fork height from the ground

    H1(mm)

    90

    90

    90

    Maximum fork height after lifting

    H2(mm)

    1600/2000/2500/3000/3500

    1600/2000/2500/3000/3500

    1600/2000

    Outside fork width

    E(mm)

    320-740

    320-740

    340-740

    Inside fork width

    mm

    20-440

    20-440

    20-420

    Fork working length

    L1(mm)

    1150

    1150

    1150

    Platform plate size

    e/s(mm)

    150/60

    150/60

    160/60

    Overall vehicle length

    L(mm)

    1810

    1810

    1810

    Overall width

    B(mm)

    770

    770

    770

    Overall height

    H(mm)

    2130/1580/1830/2080/2330

    2180/1630/1880/2130/2380

    2190/1630

    Max. lifting stroke

    mm

    1510/1910/2410/2910/3410

    1510/1910/2410/2910/3410

    1510/1910

    Min. turning radius

    Wa(mm)

    1450

    1450

    1450

    Performance

    Max. lifting speed (full/no load)

    mm/s

    40-50/85-95

    40-50/85-95

    40-50/85-95

    Max. descent speed (full/no load)

    mm/s

    90-110/85-95

    90-110/85-95

    90-110/85-95

    Electrical

    Lifting motor

    Kw

    1.6

    1.6

    1.6

    Battery capacity

    V/Ah

    12V120

    12V120

    12V120

    Weight

    Battery weight

    Kg

    36

    36

    36

    Self weight

    Kg

    340/390/410/430/450

    360/410/430/450/470

    430/470

    *We reserve the right to change product design and specifications without prior notice.
