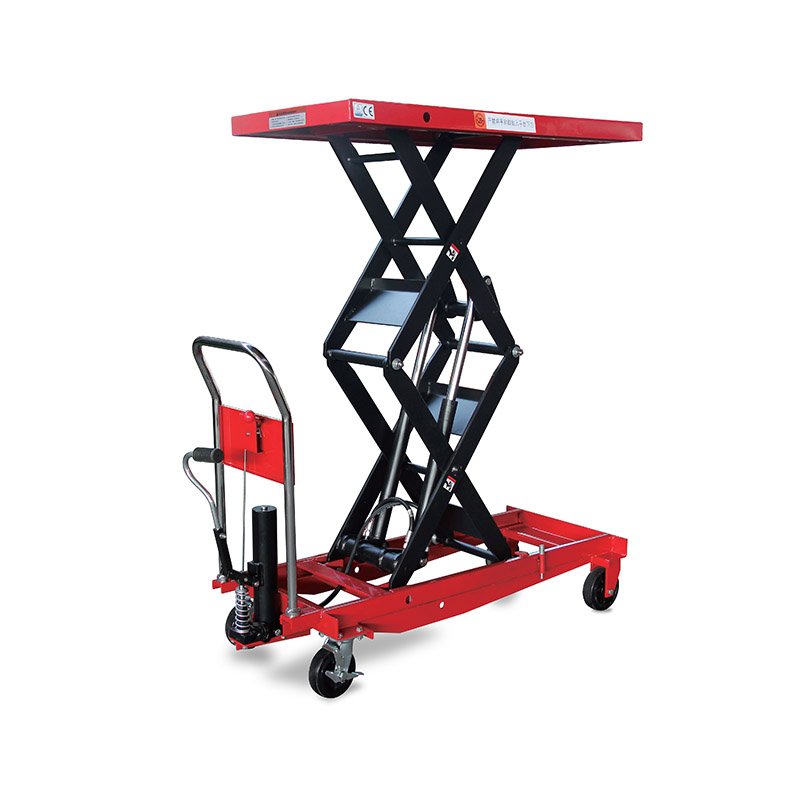

SYTJ-S100W Hand Scissor Lifting Table
Modol: SYTJ-S100W Hand Scissor Lifting Table

Anti-overload double shear hydraulic scissor lift platform truck

With double scissors mechanism.
The hydraulic cylinder with safety valve is installed directly on the cylinder. This prevents the platform from falling in the event of a malfunction.
The valve regulates the speed of descent. Use the knob for precise, sensitive lowering.
An overload valve prevents overloading. Positioning aids to help center the load on the platform.
  • Parameters
  • Assembly Diagram
  • Contact
  • Model



    SYTJ-S100W

    Rated load

    kg

    1000

    Minimum platform height

    mm

    500

    Maximum height of platform after lifting

    mm

    1700

    Platform size

    mm

    1200×610×60

    Wheel size

    mm

    Φ150×50

    Handle height from the ground

    mm

    1020

    Number of times platform lifted to maximum oil pump pump pressure



    ≦145

    Self-weight

    kg

    190
