Home / Products / Scissor Platform Truck Series / DYTU-100 Semi Electric Scissor Lifting Table

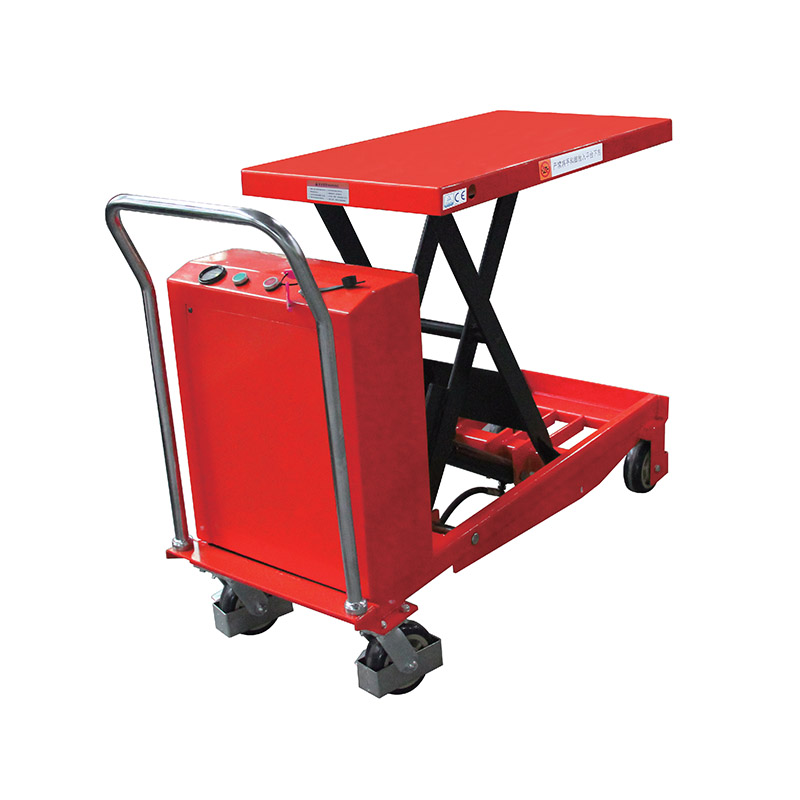

DYTU-100 Semi Electric Scissor Lifting Table
Modol: DYTU-100 Semi Electric Scissor Lifting Table

Hydraulic electric scissor lift trolley

The mobile scissor lift is made of high-strength steel, with reasonable design structure, safe, stable and reliable, built-in safety valve, fully sealed oil cylinder, manual control hydraulic system lifting, easy to operate. With guide wheels, it saves the operator's physical strength and can protect the wheels and pallet load-bearing wheels. The lifting system can be operated by battery power and manual control. Greatly improve work efficiency, reduce labor intensity, and can also be modified for handling and hoisting.
  • Parameters
  • Assembly Diagram
  • Contact
  • Model



    DYTJ-50

    DYTJ-100

    Rated load

    Kg

    500

    1000

    Minimum platform height

    h(mm)

    290

    390

    Maximum height of platform after lifting

    h1(mm)

    900

    1000

    Platform size

    mm

    815×510×50

    1000×510×55

    Wheel size

    mm

    Φ125×50

    Φ150×50

    Handle height from the ground

    H(mm)

    980

    1020

    Lifting speed

    mm/s

    60

    60

    Lowering speed

    mm/s

    80

    80

    Battery capacity

    V/Ah

    12/70

    12/70

    Self-weight

    Kg

    210

    220
