CDDYG-E Electric Stacker
Modol: CDDYG-E Electric Stacker

Non-vibration enhanced standard gantry electric stacker

  • Reinforced standard gantry stacker with uniform displacement and no vibration;
  • When the handle is in the vertical state, it can also easily control the vehicle to walk, effectively ensuring that the turning can be realized in the narrow channel and the stacking operation can be carried out;
  • American CURTIS drive controller, American Gates high-pressure oil pipe and external explosion-proof valve structure. The lifting and lowering are controlled by the flow of multiple manual valves.
  • The lifting oil cylinder is designed with a special buffer structure to prevent the gantry from shaking and ensure the safety of cargo lifting;
  • The support leg of the door base is made of solid square steel, which makes the structure of the door frame firm and reliable, resistant to impact and deformation;
  • When the drive wheel cannot work or needs maintenance, it can be easily removed and replaced as long as the fixing screws are removed.
  • Parameters

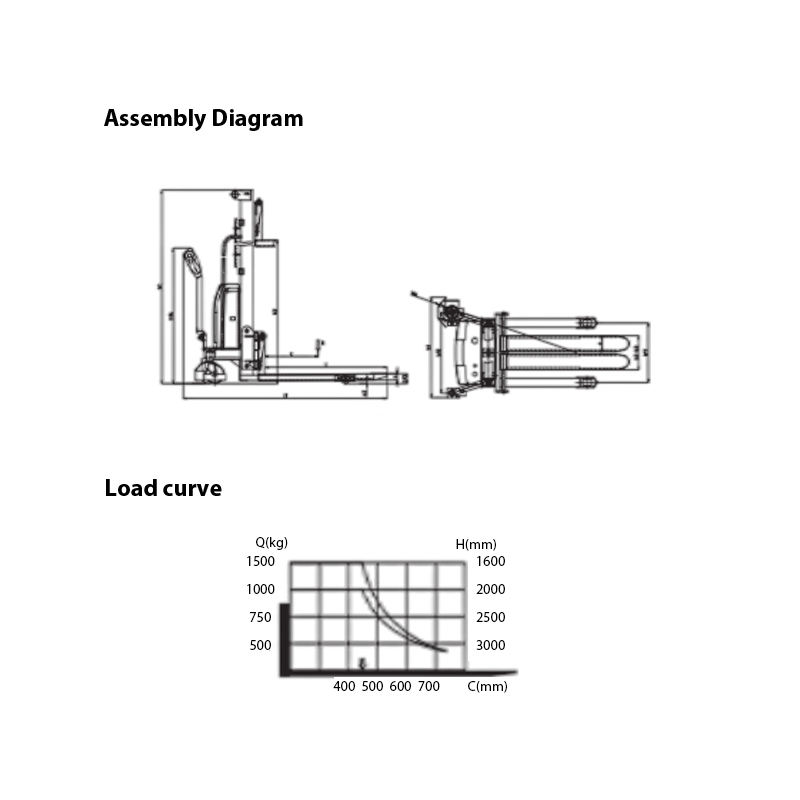

  • Assembly Diagram
  • Contact
  • Model



    CDDYG-E 1016/1020/1025/1030

    CDDYG-E 1516/1520/1525

    Basic

    Rated load

    Q(Kg)

    1000

    1500

    Load centre distance

    C(mm)

    450

    450

    Lifting method



    Electric

    Electric

    Operating method



    Walking

    Walking

    Wheels

    Material



    PU

    PU

    Driving/steering/weight-bearing wheels Quantity



    1×+1/2

    1×+1/4

    Size of load-bearing wheels

    mm

    Φ80×60

    Φ80×60

    Drive wheel size

    mm

    Φ210×75

    Φ210×75

    Steering wheel size

    mm

    Φ180×50

    Φ180×50

    Dimensions

    Front wheel spacing

    b11(mm)

    560

    560

    Rear wheel spacing

    b10(mm)

    760

    760

    Minimum fork height from the ground

    h13(mm)

    90

    90

    Maximum fork height after lifting

    h3(mm)

    1600/2000/2500/3000

    1600/2000/2500

    Outside fork width

    b3(mm)

    320-740

    320-740

    Inside fork width

    b2(mm)

    20-440

    20-440

    Single-sided fork dimensions

    l/e/s(mm)

    1150×150×60

    1150×150×60

    Overall vehicle length

    l1(mm)

    1920

    1920

    Overall width

    b1(mm)

    945

    945

    Overall height

    h1(mm)

    2140/1580/1830/2080

    2180/1630/1880

    Min. turning radius

    Wa(mm)

    1480/1480/1480/1430

    1430

    Aisle width, pallet1000*1200

    mm

    2170

    2170

    Aisle width, pallet800*1200

    mm

    2220

    2220

    Performance

    Max. travel speed (full/no load)

    km/h

    3.5/4

    3.5/4

    Max. lifting speed (full/no load)

    mm/s

    105/170

    105/170

    Max. descent speed (full/no load)

    mm/s

    180/170

    180/170

    Climbing speed (full/no load)

    %

    4/6

    4/6

    Electrical

    Drive motor

    Kw

    24V0.75

    24V0.75

    Lifting motor

    Kw

    24V2.2

    24V2.2

    Battery capacity

    V/Ah

    2×12/80

    2×12/80

    Charger type

    V/Ah

    24/12

    24/12

    Weight

    Battery weight

    Kg

    2×18.2±0.5

    2×18.2±0.5

    Self-weight

    Kg

    360/420/425/455

    390/425/460

    *We reserve the right to change product design and specifications without prior notice.
