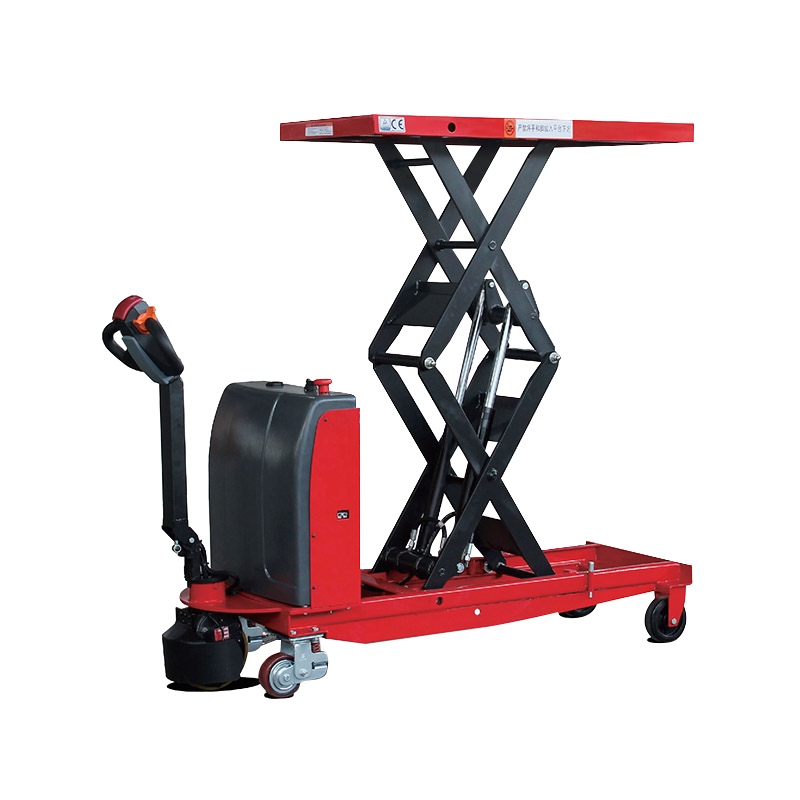

CDDTJ-S100 Electric Scissor Lifting Table
Modol: CDDTJ-S100 Electric Scissor Lifting Table

Safety ramp anti-skid design convenient use of lifting electric lifting table

  • It has slope anti-slide function to ensure safe operation.
  • The red brake button on the handle head can be pressed when driving in an emergency to effectively brake and prevent the driver from being injured.
  • The double protection of the electronic lifting limit and the intelligent limit of the controller can avoid the impact when lifting to the top, effectively protect the working motor and protect the safety of the goods.
  • Use AC motor, no carbon brush, less maintenance.
  • The integrated power display, timing and fault self-diagnosis table are convenient for maintenance.
  • The rear cover can be fully opened and the components can be seen at a glance, making the maintenance of the whole machine convenient.
  • All rotating shafts are installed with lubricating sleeve and oil cup, which is convenient for maintenance.
  • Parameters
  • Assembly Diagram
  • Contact
  • Model



    CDDTJ-S50/S100

    Rated load

    Kg

    500/1000

    Minimum platform height

    h(mm)

    500

    Maximum height of platform after lifting

    h1(mm)

    1700

    Platform size

    mm

    1200×610×60

    Directional Wheel Size

    mm

    Φ150×50

    Counterbalance wheel size

    mm

    Φ75×46

    Drive wheel size

    mm

    Φ210×75

    Overall vehicle dimensions (L x W x H)

    mm

    1860×610×1280

    Handle height from the ground

    H(mm)

    1280

    Min. turning radius

    mm

    1700

    Travel speed (full/no load)

    km/h

    3.5/4

    Lifting speed (full/no load)

    mm/s

    88/107

    Descent speed (full/no load)

    mm/s

    130/93

    Drive motor

    V/kw

    24/0.65

    Lifting motor

    V/kw

    24/2.2

    Battery capacity

    V/Ah

    2×12/100

    Self-weight

    Kg

    320
