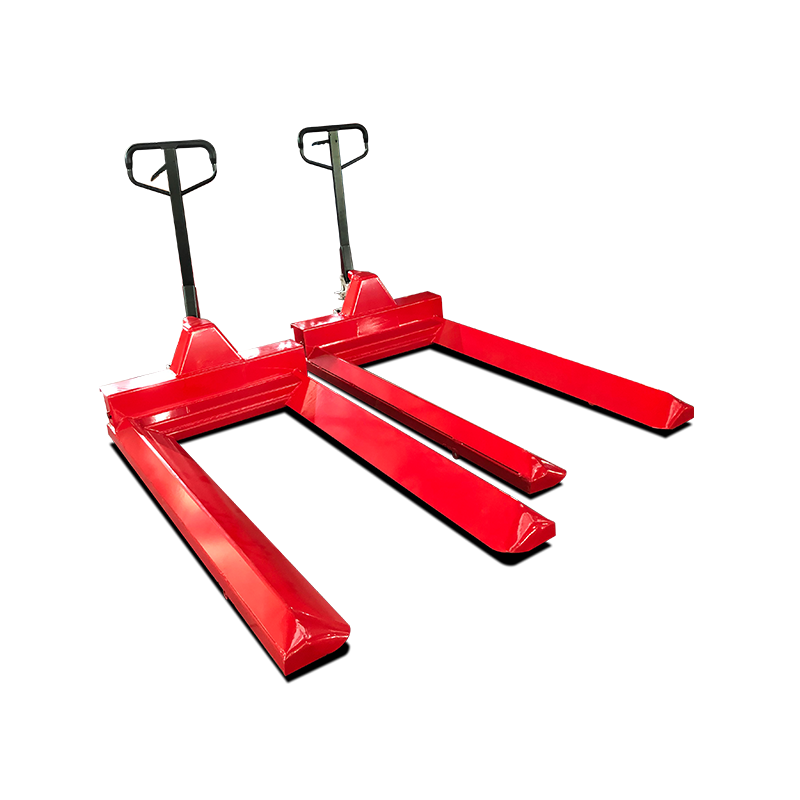

SYP-IIK-P Hydraulic Pallet Truck Custom
Modol: SYP-IIK-P Hydraulic Pallet Truck Custom

Manual Hydraulic Pallet Truck (Cylinder Trolley)

Rated load

Kg

2000

Minimum fork height

mm

85

Maximum fork height after lifting

mm

200

Max. lifting stroke

mm

≥110

Suitable tube diameter

mm

400-1500

Fork working length

mm

915-2000

Single fork width

mm

160

Fork thickness

mm

50

Diameter of cylinder lift rod

mm

Φ35

Load-bearing double wheel size

mm

Φ80×70

Steering wheel size

mm

Φ180×50

Wheel material



Nylon

Self-weight

Kg

63-75
