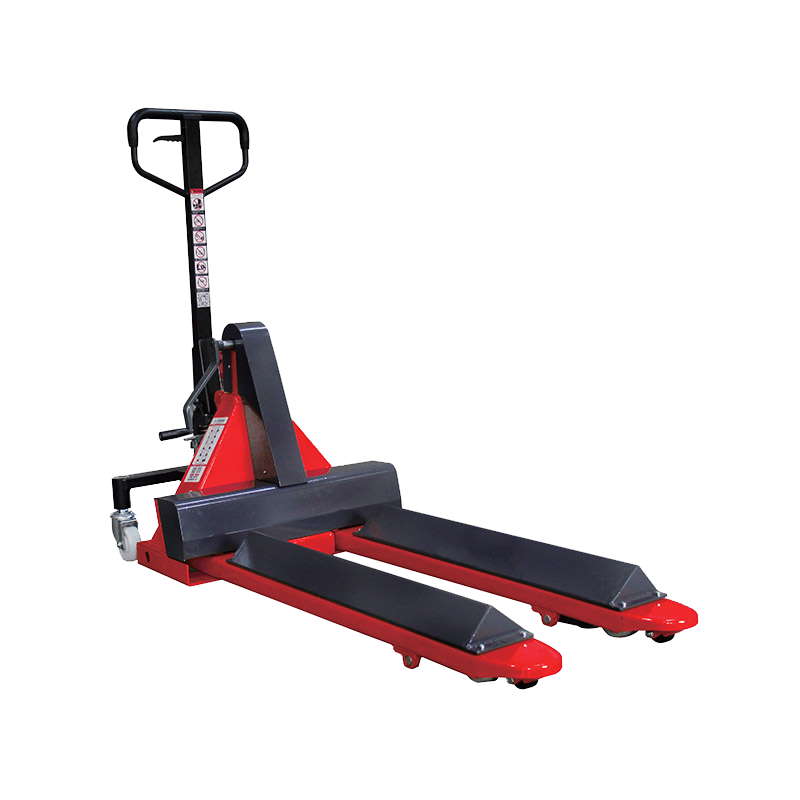

SYP-HT Hydraulic Pallet Truck Custom
Modol: SYP-HT Hydraulic Pallet Truck Custom

Combined Adjustable Manual Hydraulic Pallet Truck

Rated load

Kg

1000

2000

Minimum fork height

H(mm)

75

75

Maximum fork height after lifting

H1(mm)

190

190

Max. lifting stroke

mm

≥110

≥110

Outside fork width

B(mm)

540 -685

540 -685

Inside fork width

mm

340 -485

220 -365

Fork working length

L(mm)

1450

1450

Single fork width

e(mm)

100

160

Fork thickness

s(mm)

50

50

Complete vehicle length

L1(mm)

1624

1624

Overall width

mm

700

700

Overall vehicle height

H2(mm)

1245

1245

Cylinder lift rod diameter

mm

Φ35

Φ35

Load-bearing single wheel size

mm

-

Φ74×93

Load-bearing double wheel size

mm

Φ75×35

Φ74×70

Steering wheel size

mm

Φ180×50

Φ180×50

Min. turning radius

mm

1350 -1450

1350 -1450

Wheel material



PU/Nylon/Rubber

PU/Nylon/Rubber

Self-weight

Kg

106

112

Options: Rolled drum forks, plastic basket forks, fork adjustment sizes can be customised.
  • Parameters
  • Assembly Diagram
  • Contact

Recommended Products

OEM/ODM SYP-HT Hydraulic Pallet Truck Custom Factory

Zhejiang Lanxi Shanye Machinery Co., Ltd.


Zhejiang Lanxi Shanye Machinery Co., Ltd. was established in 1994, We are professional Custom SYP-HT Hydraulic Pallet Truck Custom Factory and OEM/ODM SYP-HT Hydraulic Pallet Truck Custom company. Formerly known as Xiangxi Cement Machinery Factory, specializing in the production of mining and cement conveying equipment and accessories. In 2003, the company transformed and upgraded, began to develop and produce logistics handling equipment and changed its name to Zhejiang Lanxi Shanye Machinery Co., Ltd. The company is located in Xiangxi Industrial Zone, Lanxi City, Zhejiang Province. It is a professional manufacturer of logistics equipment such as manual hydraulic pallet truck, manual hydraulic stacker, manual hydraulic platform truck, semi-electric hydraulic stacker, and full electric hydraulic stacker. The company has more than 200 employees, covers an area of more than 37333㎡, has assets of more than 60 million yuan, and has an annual output of 100,000 manual hydraulic trucks, 40,000 manual hydraulic stackers, and 7,000 electric series. The company has passed ISO9001:2008 management system, and its products have obtained EU CE, TUV, GS certification. The products are widely used in various places of modern logistics, which greatly improves work efficiency and has won unanimous praise from domestic and foreign customers. The logistics equipment produced by Shanye Machinery has strong market competitiveness. The products sell well in Canada, the United States, Australia, Russia, Turkey, Brazil, Singapore and more than 30 countries and regions, and have a large number of loyal customers in the global market. The company takes "integrity, service, research and development, quality, safety" as its purpose, "creates brand with quality, develops enterprise with innovation, expands market with integrity, wins customers with service" to return customers, and with the goal of "manufacture competitive logistics equipment ", through in-depth analysis of domestic and foreign logistics equipment and logistics equipment markets, grasp the development trend of logistics equipment. The company pays attention to independent innovation, develops a batch of new processes and technologies, reduces energy consumption, thus improving work efficiency and enhancing product competitiveness. With the sales concept of "quality+service+price=brand competitiveness", we devote to building a competitive "Shanye" brand. The development of Shanye Machinery cannot be separated from your strong support. We hope that through our joint efforts, we can finally achieve "win-win".
