Model |
Unit |
CBD50 |

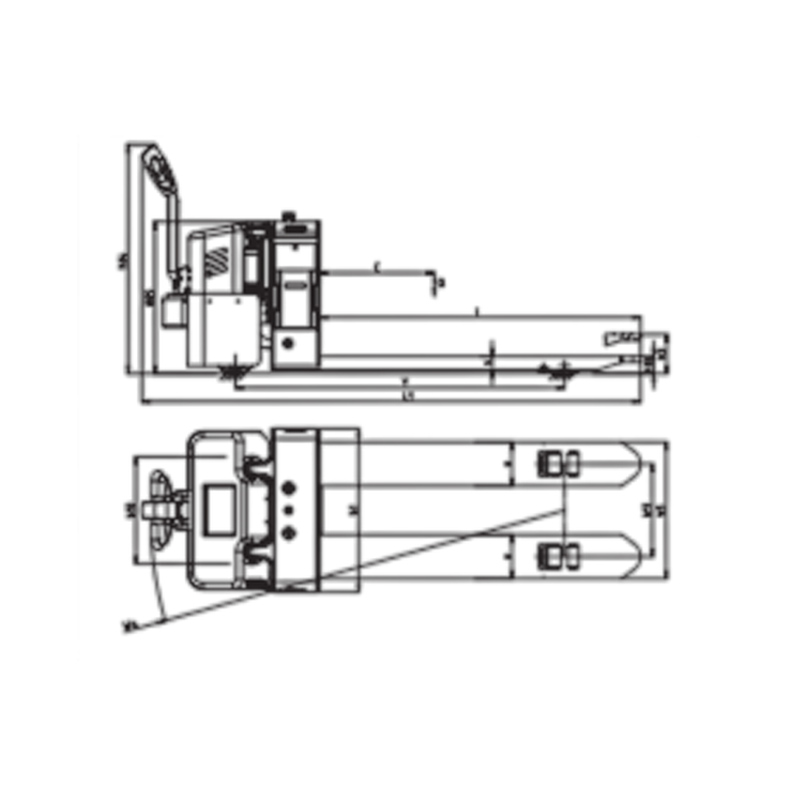

Overall vehicle length |
l1(mm) |
2650 |
Rated load |
Q(Kg) |
5000 |
Overall vehicle width |
b(mm) |
855 |
Load centre distance |
C(mm) |
600 |
Overall vehicle height |
mm |
1200 |
Lifting methods |
|
Electric |
Passage width |
mm |
3000 |
Mode of operation |
|
Walking |
Minimum turning radius |
Wa(mm) |
2170 |
Materials |
|
PU |
Maximum travel speed (full/no load) |
km/h |
4/5 |
Wheelbase |
y(mm) |
1723 |
Max. lifting speed (full load/no load) |
mm/s |
15/20 |
Drive wheels/balance wheels/weight-bearing wheels Quantity |
|
1×+4/4 |
Maximum descent speed (full/no load) |
mm/s |
20/15 |
Load-bearing wheel size |
mm |
Φ80×110 |
Fast/slow speed adjustment function |
|
Yes |
Drive wheel size |
mm |
Φ260×105 |
Climbing |
% |
≤4 |
Balance wheel size |
mm |
Φ150×40 |
Drive mode |
|
AC |
Minimum fork height from the ground |
h13(mm) |
90 |
Drive motors |
V/Kw |
24/4 |
Maximum height after fork lift |
mm |
200 |
Lifting motors |
V/Kw |
24/2.2 |
Max. lifting stroke |
h1(mm) |
115 |
Battery capacity |
V/Ah |
24/210 |
Outside width of forks |
mm |
715 |
Charger type |
V/A |
24/30 |
Inside fork width |
mm |
255 |
Battery weight |
Kg |
200 |
Fork dimensions |
l/e/s(mm) |
1680/230/70 |
Self-weight |
Kg |
880 |
